ALTERNATOR DIODE BOARD ( Heavy Duty ) ( EnDuraLast )

Choose Model

ALTERNATOR DIODE BOARD
( Heavy Duty )
( EnDuraLast )

ALTERNATOR DIODE BOARD
( Heavy Duty )
( EnDuraLast )

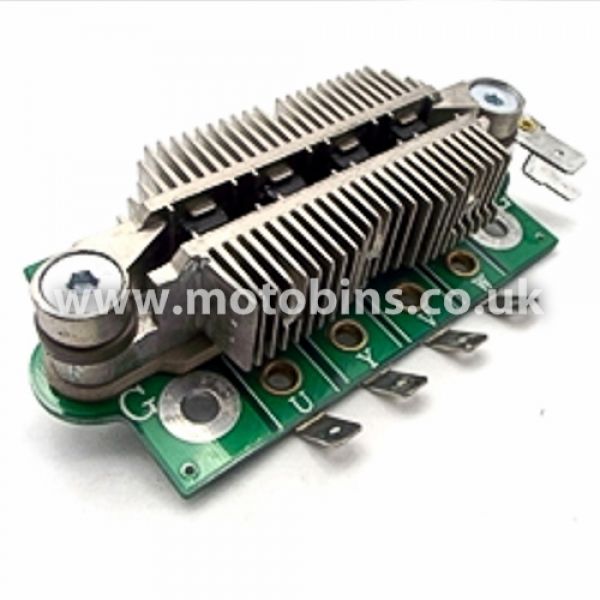

Code: 73200HD BMW: 12 31 1 244 063

Modern Design and Technology to provide the latest in reliability and endurance under increased current demand and high heat conditions. --------- 8 x 50 amp diodes >>> press fit into a heavy duty aluminum multi-finned heatsink>>>52 heat sink fins, more surface area = increased heat dissipation>>>mounted on a Printed Circuit Board>>>connections use high-temp solder >>>supplied with 12 gauge wiring harness>>>supplied with dielectric gel to promote conductivity and protect connections from corrosion.

R50/5 | R60/5 | R75/5 | 1970 - 1973

R60/6 | R75/6 | R90/6 | R90S | 1973 - 1976

R60/7 | R75/7 | R80/7 | R100/7/T | R100S | 1976 - 1980

R80 | R80RT | 1977 Onwards

R100 | R100RT | R100RS | R100CS | 1976 Onwards

R45 | R65 | R65LS | R65RT | 1978 Onwards

R80g/s | R80ST | 1981 - 1987

R80GS & PD | R80R & Mystic | 1988 Onwards

R100GS & PD | R100R & Mystic | 1988 Onwards
